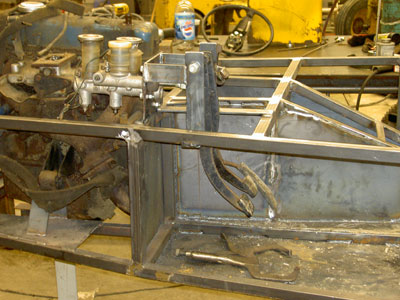

Side View of Pedals

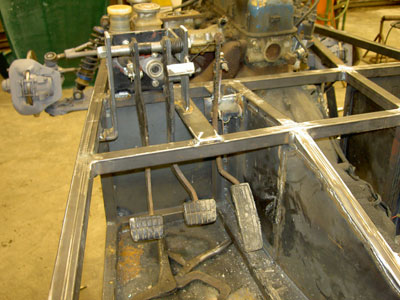

Pedal Picture




The B-210 pedals including the Brake and the clutch master cylinders are all being used in this build. We plan to run the steering shaft between the brake and clutch pedals. The Brake cylinder did have a booster installed. We are leaving it out because of the lightness of the car.

Hard to see in this picture is the attachment of the gas pedal it is installed by attaching the whole assembly by its mounting pad. Even has a nice return spring! Very nice.
